DRAWING DETAILS
Preferred Unit System
All values should be entered in the selected unit system. The drawing will also be generated in the selected unit system.
Precision
Decimal precision of the drawing file to be generated
MODULE DETAILS
Module Manufacturer
Module Model
Module Length m
Module Width m
Module Hole Spacing m

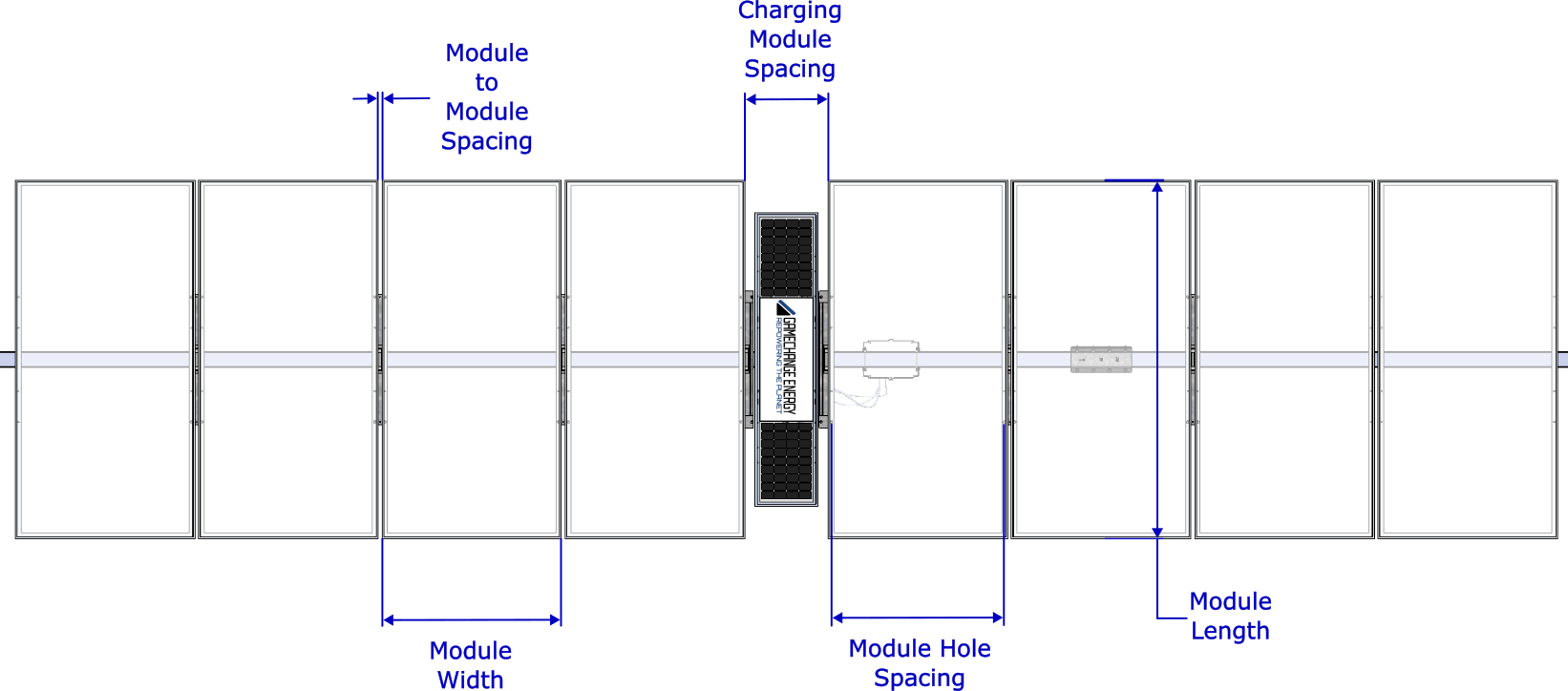

Mounting hole spacing to be the same as module width, for First Solar Series 6 and 7.
Module dimensional tolerance is considered as 2mm.
MOUNTING DETAILS
Module to Module Spacing m
Spacing between adjacent modules on mounting rails
Charging Module Gap m
Spacing to accomodate charging module
STRING DETAILS
String Length
Number of modules per string
Check this if custom string counts are needed (eg: 16 string, 12 string, 10 string)
Max String Count
The maximum string count tracker to be created
Min String Count
The least string count tracker to be created
Terrain following and cable management considerations are currently outside the scope of this tool.
